$ 376,900.00
Manufacturer
Ramvac
Model
HX-15
Condition
Used
Year
2020
Mounting Type
Truck-Mounted
Vacuum Type
Positive Displacement
Vacuum, Max
18 in Hg
Air Flow
4400 cfm
Vacuum Filter
Cyclone separator + 10-micron final filter
Suction Hose Diameter
8 in
Debris Tank Capacity
15 yd3
Tank Material
Carbon Steel (Painted)
Rear Door / Tailgate Type
Hydraulic
Tank Outlet Valve
6 in
Discharge Method
Hydraulic Dump + Pressure Unload
Water Tank Capacity
1300 gal
Water Pump Flow
10 gpm
Water Pump Pressure
2500 psi
Boom System Type
Telescopic
Boom Reach
26 ft
Boom Rotation
320 °
Engine Make
Cummins
Engine Model
X15
No. of Cylinders
6
Displacement
14.9 L
Horsepower
425 HP
Fuel
Diesel
Fuel Tank Capacity
150 gal
Chassis Model
Western Star 4900SB
Drive Type
8x6
Transmission Type
Automatic
Transmission Model
Allison 4500 RDS
GVWR
88,000 lbs
Front Axle
22,000 lbs
Rear Axle
22,000 lbs + 22,000 lbs + 22,000 lbs
Suspension
Heavy-duty multi-leaf/walking beam
Front Tire Size
275/80R22.5
Rear Tire Size
11R22.5
Brake Type
Electric brakes
Comfort
- A/C
- Cruise Control
- Power Steering
Controls
NEMA 4 (dust and water resistant control panel)
Remote Control
Yes
Safety Alarms
Audible liquid level alarm
Emergency Shutoff
Yes
Overall Length
451 in
Overall Width
102 in
Overall Height
157 in
Empty Weight
46,500 lb
Description

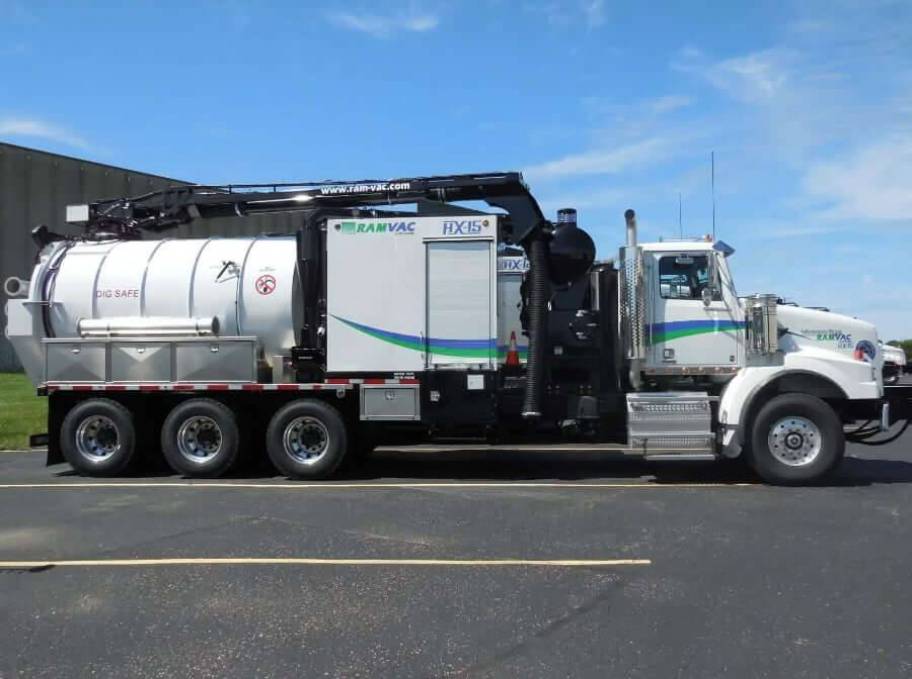

Used 2020 Ramvac HX15 Vacuum Excavator on Western Star 4900SB Tridem Axle Truck. Vac system: 18" hg @ 4400 cfm. Direct hydraulic drive, no transfer case. 6-way Dig Deep telescoping boom with hydraulic assist. 400,000 BTU water heater. Full open rear gate (hydraulic tilt tank, 50°). Heated equipment locker. Easy access inspection port. Below deck mounted aluminum tool box driver side. Dual nozzle chisel read Wand. Rotary head digging wand.
