$ 231,200.00
Manufacturer
Ramvac
Model
HX12
Condition
Used
Year
2013
Mounting Type
Truck-Mounted
Mileage
78000 Miles
Engine Hours
3600
Vacuum System Hours
1,800
Vacuum Type
Positive Displacement
Vacuum, Max
29 in Hg
Air Flow
5600 cfm
Vacuum Filter
Cyclone Separation + 10 Micron Final Filter
Suction Hose Diameter
8 in
Air Excavation Package
Standard
Debris Tank Capacity
12 yd3
Tank Material
Carbon Steel (Painted)
Rear Door / Tailgate Type
Hydraulic
Tank Outlet Valve
8 in
Discharge Method
Hydraulic Dump
Water Tank Capacity
1300 gal
Water Pump Flow
10 gpm
Water Pump Pressure
2500 psi
Boom System Type
Telescopic
Boom Reach
23 ft
Boom Rotation
320 °
Engine Make
Cummins
Engine Model
ISX15
No. of Cylinders
6
Displacement
14.9 L
Horsepower
425 HP
Fuel
Diesel
Fuel Tank Capacity
100 gal
DEF Tank Capacity
18 gal
Chassis Model
Kenworth T800
Drive Type
8x4
Transmission Type
Manual
Transmission Model
Eaton Fuller
No. of Gears
10
Max Travel Speed
70 mph
GVWR
66,000 lbs
Front Axle
20,000 lbs
Suspension
Spring Hendrickson Suspension
Front Tire Size
425/65R22.5
Rear Tire Size
11R22.5
Brake Type
Air disc brakes
Comfort
- A/C
- Cruise Control
- Power Steering
Controls
NEMA 4 Rated Control Box with Wireless Remote
Remote Control
Yes
Safety Alarms
Audible Liquid Level Alarm
Emergency Shutoff
Yes
Overall Length
456 in
Overall Width
96 in
Overall Height
157.2 in
Empty Weight
43,030 lb
Max Operating Weight
79,200 lb
Description

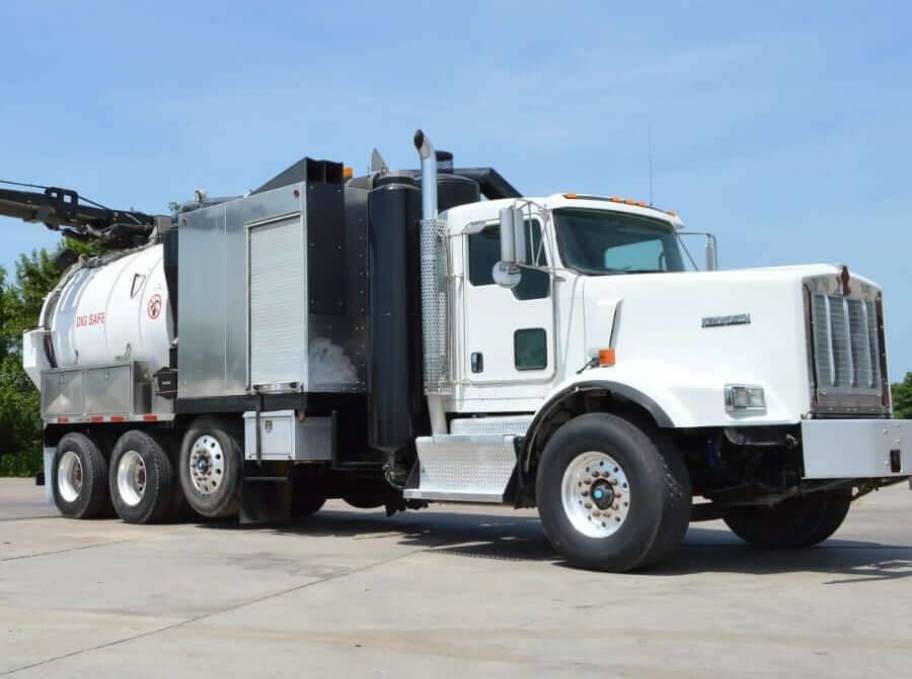

Used 2013 Ramvac HX12 Vacuum Excavator on Kenworth T800 Truck. Vac system: 29” hg @ 5600 cfm (Hibon PD Blower). 4000 psi quintuplex pump. 400,000 BTU water heater. 6-way hydraulic assist boom with 320⁰ rotation. Full open rear gate (hydraulic tilt tank, 50°). Deck mounted aluminum tool box passenger side. Extension tube kit. Digging tube with insulation. Quick clamp kit. Washdown gun. 25 feet fill hose. Heated hand wash system.
Country
United States
State/Region
Missouri
City
O'Fallon
