$ 1,084,000.00
Manufacturer
Cat
Model
3516 (60 Hz)
Condition
New
Year
2026
Standby Rating
1750 kW
Standby Apparent Power
2187 kVA
Prime Power Rating
1600 kW
Prime Apparent Power
2000 kVA
Rated Power Factor
0.8
Phase
Three
Frequency
60 Hz
Rating Type
Standby
Max Voltage
13,800 V
Current Rating
105 A @ 13800 V, 3-Phase
Speed (RPM)
1,800
Engine Make
Cat
Engine Model
3516
No. of Cylinders
16
Fuel
Diesel
Emission Standard
Tier 3
Fuel Tank Capacity
1200 gal
Fuel Consumption (100% load)
111.9 gal/hr
Fuel Consumption (50% load)
61.1 gal/hr
Automatic Voltage Regulator
Yes
Number of Leads
6
Insulation Class
H
Circuit Breakers
Yes
Battery Charger
Yes
Auto Start / Stop
Yes
Safety Shutdowns
Yes
Housing Type
Open Skid
Noise Level @ 23 ft (7 m)
74 dB(A)
Overall Length
245 in
Overall Width
90 in
Overall Height
94.9 in
Dry Weight
28,840 lb
Description

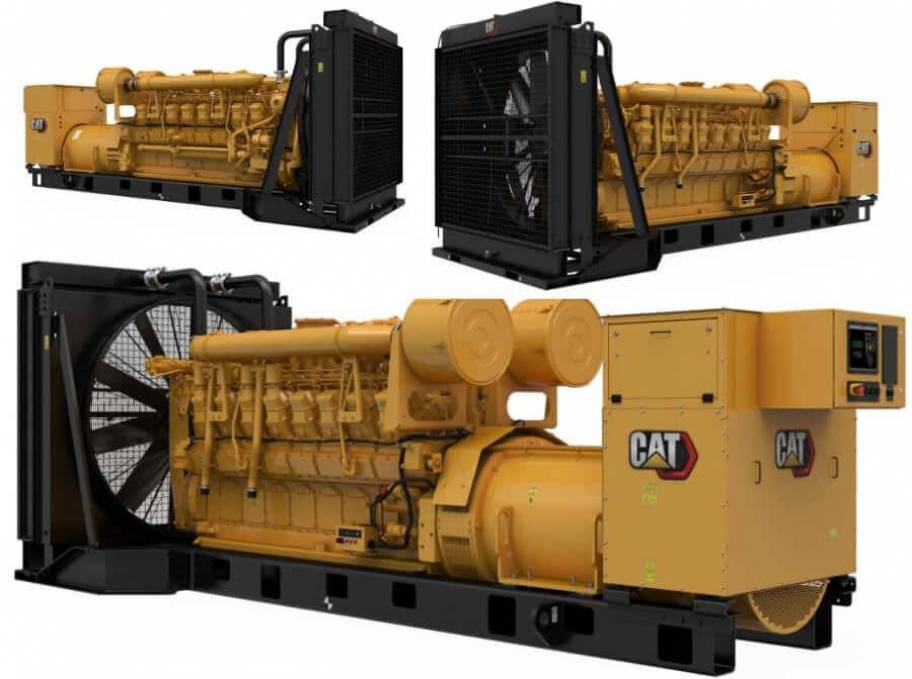

New 2026 Cat 3516 (60 Hz) Diesel Generator Set offer both low fuel consumption and low emission systems. Producing reliable power from 1450 to 1750 ekW at 60 Hz. Accepts 100% block load in one step and meets NFPA 110 loading requirements. Four-stroke-cycle Caterpillar 3516 diesel engine combines consistent performance and excellent fuel economy with minimum weight. Robust Class H insulation. Scalable system to meet a wide range of installation requirement. Expansion modules and site-specific programming for specific customer requirements
Country
United States
State/Region
California
City
Bakersfield
