$ 148,300.00
Manufacturer
Cat
Model
D500GC
Condition
New
Year
2024
Standby Rating
500 kW
Standby Apparent Power
625 kVA
Prime Power Rating
455 kW
Rated Power Factor
0.8
Phase
Three
Frequency
60 Hz
Rating Type
Standby
Max Voltage
480 V
Current Rating
751 A @ 480 V, 3-Phase
Speed (RPM)
1,800
Engine Make
Cat
Engine Model
C15
No. of Cylinders
6
Fuel
Diesel
Emission Standard
Tier 2
Fuel Tank Capacity
875 gal
Fuel Consumption (100% load)
35.7 gal/hr
Fuel Consumption (50% load)
18.6 gal/hr
Automatic Voltage Regulator
Yes
Number of Leads
12
Insulation Class
H
Circuit Breakers
Yes
Battery Charger
Yes
Auto Start / Stop
Yes
Safety Shutdowns
Yes
Housing Type
Weatherproof Canopy
Noise Level @ 23 ft (7 m)
73 dB(A)
Cold Weather Package
Yes
Overall Length
189.6 in
Overall Width
64.2 in
Overall Height
101.7 in
Dry Weight
10,346 lb
Description

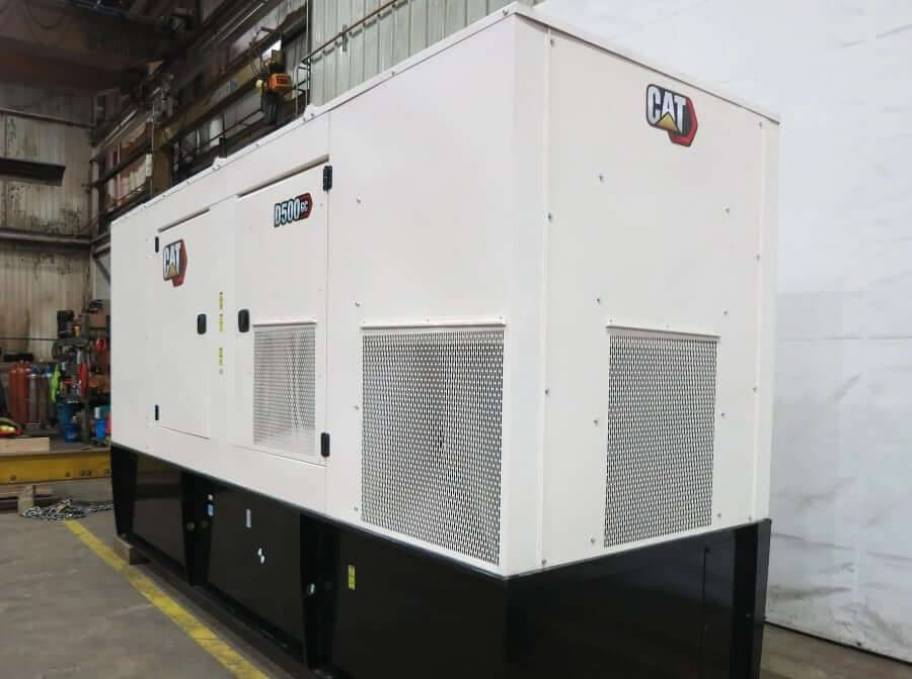

New 2024 Cat D500GC Diesel Generator Set (60 Hz). Designed and tested to comply with UL 2200 Listed generator set package. Enclosure constructed with 18-gauge steel (Caterpillar white paint) with IP23 Protection. Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight. Jacket water pump, gear driven, centrifugal cooling system. Primary fuel filter w/integral water separator and secondary filter, spin on. GCCP 1.2 Control Panel (Auto Start Control Module). Fuel and start outputs configurable when using CAN Support for 0 V to 10 V & 4 mA to 20 mA sensors. 8 configurable digital inputs (3 available for Customer use). 8 configurable digital outputs (5 available for Customer use). 4 configurable analogue inputs (3 available for Customer Use). CAN, MPU and alternator frequency speed sensing in one variant.
