$ 6,170.00
Manufacturer
Multiquip
Model
GDP5HA
Condition
New
Year
2026
Standby Rating
3.6 kW
Phase
Single
Frequency
60 Hz
Rating Type
Standby
Max Voltage
240 V
Current Rating
15 A @ 240 V, 1-Phase
Speed (RPM)
3,600
Engine Make
Honda
Engine Model
GX340
No. of Cylinders
1
Fuel
Gasoline
Fuel Tank Capacity
5 gal
Fuel Consumption (50% load)
0.75 gal/hr
Automatic Voltage Regulator
Yes
Insulation Class
F
Circuit Breakers
Yes
Auto Start / Stop
Yes
Safety Shutdowns
Yes
Housing Type
Open Skid
Overall Length
29 in
Overall Width
22 in
Overall Height
22 in
Dry Weight
236 lb
Description

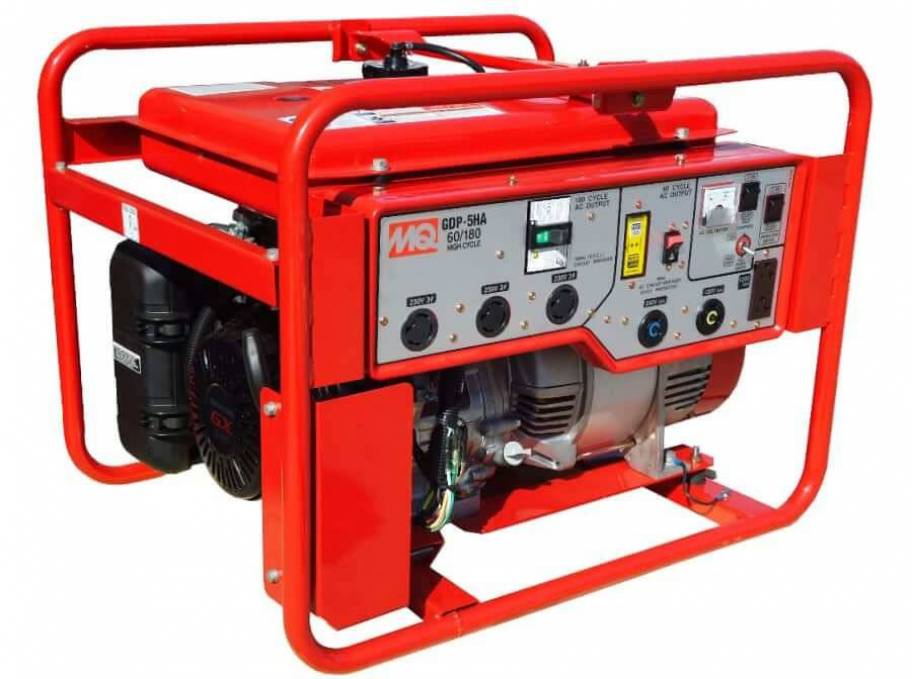

New 2026 Multiquip GDP5HA High-Cycle Portable Generator (4kW - 60 Hz / 5kW - 180 Hz). Powered by a Honda GX340 gasoline engine this unit takes the place of two generators. Continuous Amps = 30A @ 120V / 15A @ 240V. Maximum Amps = 33A @ 120V / 16.5A @ 240V. Ideal for the professional contractor. Circuit Breakers = 60Hz - 30 A; Number of Poles 60Hz - 2 / 180Hz - 3; 1 Receptacle of Each = L6-20R 250 V T-Lock 20 A / L5-30R 125 V T-Lock 30 A; 3 Receptacles of Each - NEMA 7410 230 V T-Lock 12.5 A.
Country
United States
State/Region
California
City
Bakersfield
